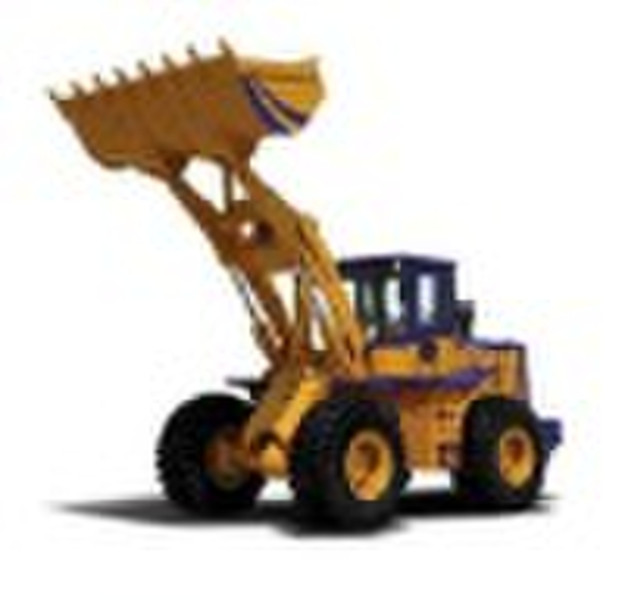

LonKing Wheel Loader CDM853

Overall DataBucket Capacity (m3)3Rated Payload(kg)5000Operating Weight(kg)15850±300Traction Force(kN)150±3Breakout Force(kN)155±3Travel Speeds (km/h)IIIIIIIVForward11.536.0Reverse16.0EngineWEICHAI WD615GRated Power(kw/rpm)162/2200Peak Torque(Nm/rpm)850/1400Starting Voltage(V)24Drive TrainTorque ConverterSingle-stage, Duo-turbine, 4-elementTorque Ratio4.0TransmissionPlanetary Powershift TransmissionGear2F/1RPressure of Transmission(MPa)1.2 1.5Main ReducerSpiral Bevel, 1-stage ReductionFinal ReducerPlanetary ReductionTire23.5-25 L-3 16PRBrake SystemService BrakeSingle Circuit Caliper, Dry BrakeSetting Pressure (MPa)0.78Parking BrakeFlexible Shaft Controlled CaliperStandardAir Actuated Caliper BrakeLonking Transmission Lonking Axle Standard BucketLog Fork(J) Coal Bucket (M) Side Dump (C)Steering SystemTypeHydraulic Load SensingCylinders-Bore×Stroke(mm)2-100×324Steering PumpGear PumpSystem Pressure(MPa)16Flowrate(L/min/RPM)176/2200Steering Angle±35°Hydraulic SystemLift Cylinders-Bore×Stroke(mm)2-160×836Tilt Cylinder-Bore×Stroke(mm)1-180×559Model of Implement PumpGear PumpFlowrate(L/min/RPM)220/2200System Pressure(MPa)16Hydraulic Cycle Time, Rated Load in Bucket(in Second)Raise(Loader)DumpLower(Empty)Total6.01.24.311.5Electrical SystemSystem Voltage(V)24Battery (2 in series)(Ah)120Lamp Voltage(V)24Service Refill CapacityFuel Tank(L)360Hydraulic Tank(L)360Crankshaft(L)20Transmission(L)45Front Axle(L) /Rear Axle(L)23/23Air Conditioning SystemHeating Capacity(W)5800 (±10%)Cooling Capacity(W)4500 (±10%)
